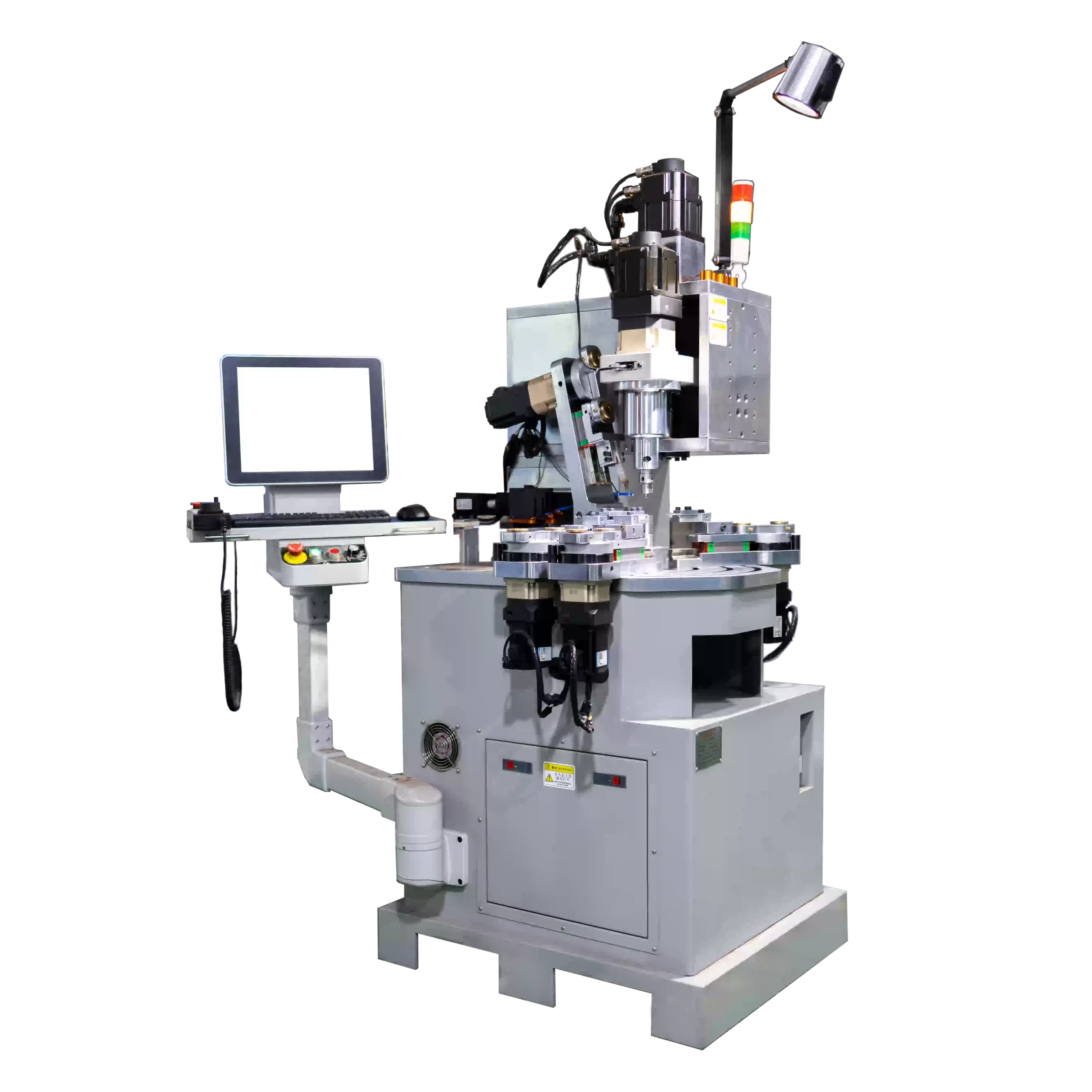

EC-820 Winding Machine
| Model Name | EC-820 Edgewise Coil Winding Machine |
|---|---|
| Material Range | 0.2 × 5.0 mm² ≤ Cross-section≤ 12 mm² flat copper wire |
| Machine Weight | 450 kg |
-
✔ Servo-driven edgewise winding system for stable and precise coil forming
-
✔ Supports round, flat, and square enameled copper wire
-
✔ Enables multi-layer parallel winding to accommodate diverse coil structures
-
✔ Ideal for small to medium coil production with consistent shaping
-
✔ Compact design tailored for high-frequency, high-efficiency electronic components
-
✔ Widely used in power electronics, EV, and energy system coil manufacturing
🔧 Applications: Power inductors, Air core coils, Common mode chokes, EV wire coils, Magnetic components for energy & electronics
