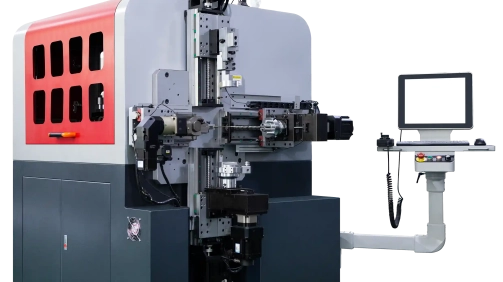

EC-650 Edgewise Winding Machine
EC-650 Edgewise Winding Machine
High-precision CNC winding system for enamelled flat copper wire coils
Optimized for edgewise winding of large-size wire in industrial power electronics
-
Advanced multi-axis CNC system with stable servo control
-
Supports automatic wire feeding, edgewise winding, and wire cutting
-
Capable of forming multiple coil geometries with programmable precision
-
Flexible integration with customized accessories such as:
robotic arm-assisted common mode choke winding,
flat wire laser stripping units, etc. -
Ideal for EV/HEV, ESS, inverter, and SiC/GaN high-frequency magnetic applications
TECHNICAL SPECIFICATIONS
| Model Name | US-650 Edgewise Winding Machine |
|---|---|
| Flat Copper Wire Size | ≤ 30mm² |
| Wire Width (W) | 2.0MM ≤ W ≤ 12.0MM |
| Wire Thickness (T) | 0.3MM ≤ T ≤ 5.0MM |
| Max. Coil Height | ≤ 60mm |
| Weight | 900 KG |
