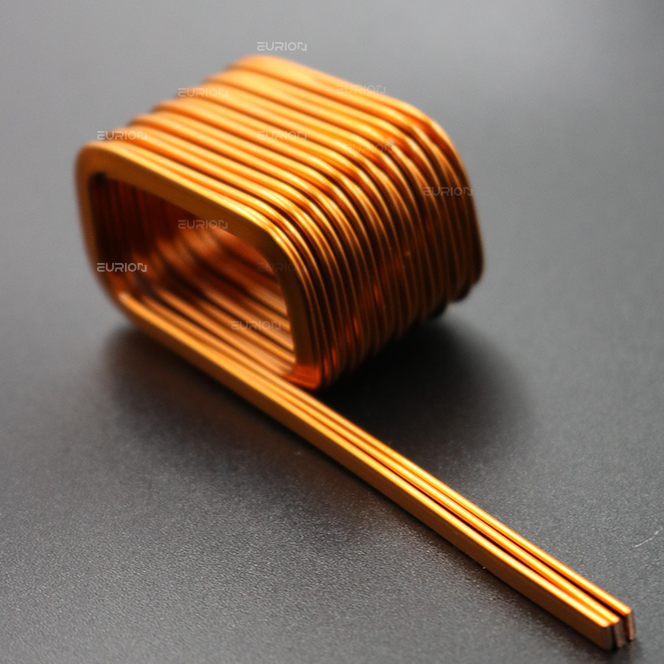

Multi-Layer Square Flat Wire Coil – Precision Edgewise Winding
This three-layer square flat wire coil is designed for high-efficiency applications such as common mode chokes, high-frequency transformers, and EMI filters in EV systems, industrial power supplies, and renewable energy inverters.
The compact multilayer design ensures:
-
Excellent thermal performance
-
Tight edgewise winding for space-saving layouts
-
High current capacity with reduced AC resistance
Such complex coil geometry highlights the capabilities of automated flat wire coil forming equipment developed by EurionCNC, enabling manufacturers to achieve consistent quality and production efficiency in demanding magnetic applications.
Looking to produce similar multilayer flat wire coils? EurionCNC offers custom winding systems tailored for square and edgewise coil manufacturing.
