Hub motor with trapezoidal coil winding for enhanced power and efficiency. Trapezoidal coil winding for high-performance hub motors used in electric vehicles. Precision winding technology for trapezoidal coils in hub motors. Custom trapezoidal coil design for EV hub motor applications. High-power hub motor coil with optimized trapezoidal winding for maximum efficiency.

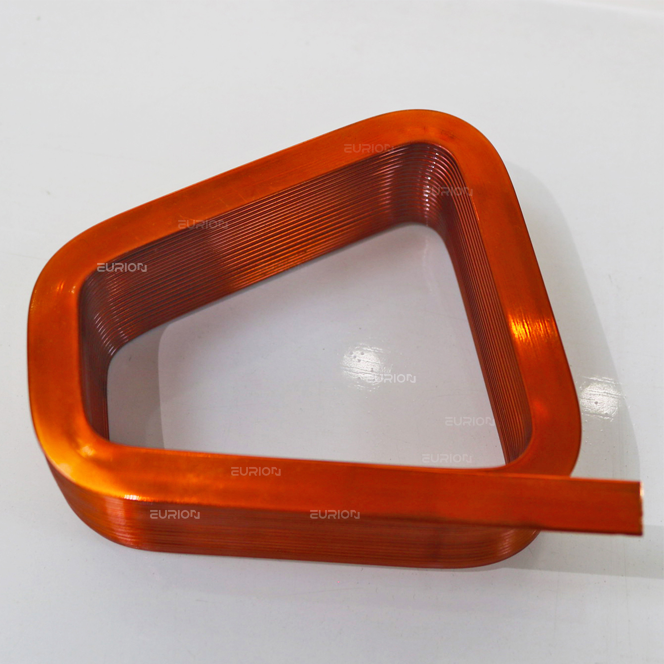

Trapezoidal Flat Wire Coil for Hub Motor Applications

Designed for electric hub motors, this trapezoidal flat wire coil features:

  • High slot fill factor for better electromagnetic efficiency

  • Optimized for axial flux and radial flux motor winding

  • Excellent thermal management and compact design

  • Compatible with automated coil forming and winding systems

Ideal for EV drive systems, e-mobility motors, and precision coil production, this coil structure demonstrates what’s possible with advanced flat wire forming solutions by EurionCNC.
