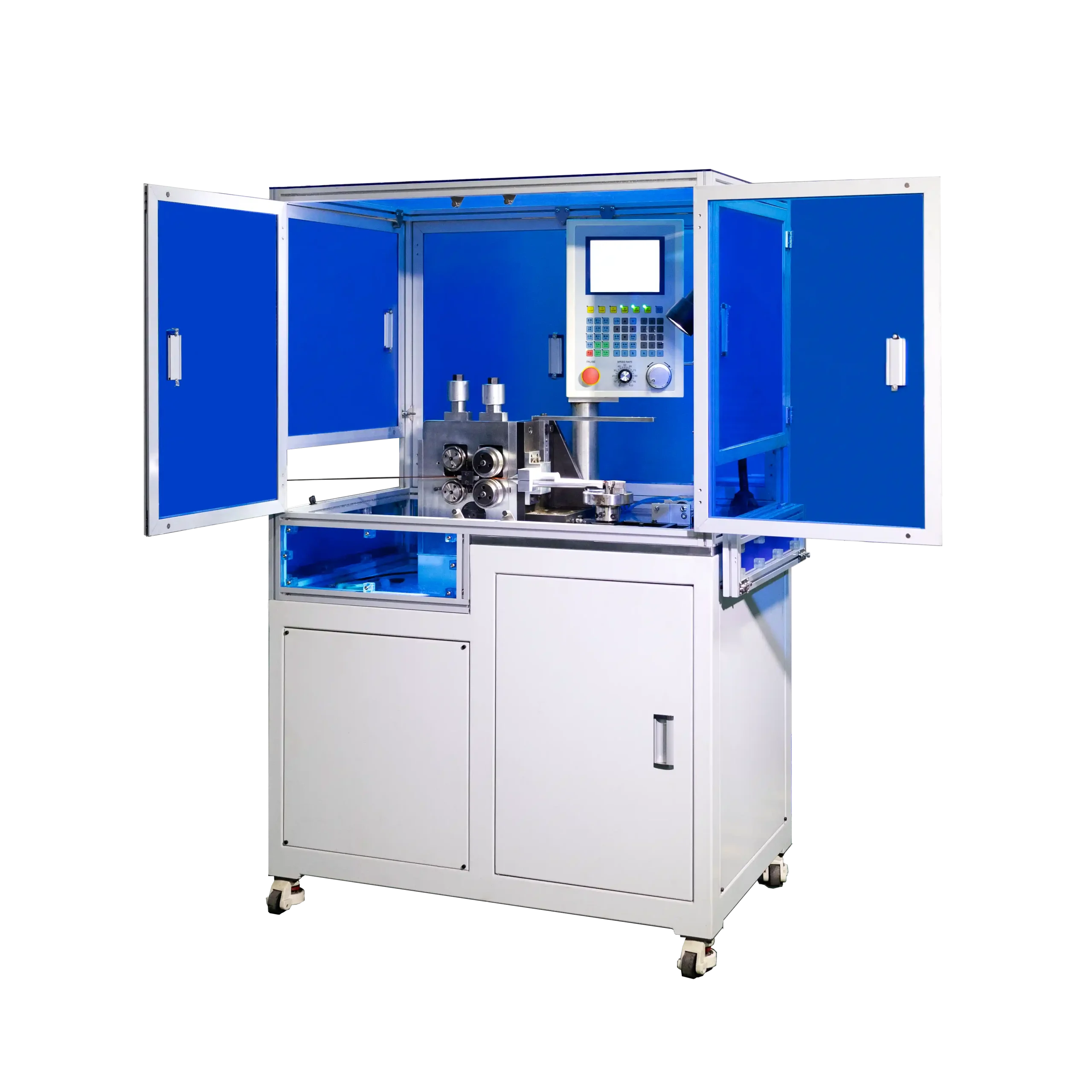

EC-208F Winding Machine
Entry-level solution for flat copper wire edgewise winding applications
-
Basic 2-axis CNC control, ideal for standard coil production
-
Supports automatic wire feeding, edgewise winding, and wire cutting
-
Designed specifically for flat enamelled copper wire up to 30mm²
-
Compact structure, cost-effective for small and medium batch production
-
Easy to operate, perfect for entry-level users or as auxiliary equipment in larger lines
TECHNICAL SPECIFICATIONS
| Model Name | EC-208F Edgewise Winding Machine |
|---|---|
| Flat Copper Wire Size | WT≤ 30mm² 2.0mm ≤ W ≤ 12.0mm | 0.3mm ≤ T ≤ 5.0mm |
| Max. Coil Height | ≤ 200mm |
| Weight | 450 KG |
| Applications | Common mode chokes, high-power flat wire coils, enamelled copper wire inductors, busbar coils, transformer windings, EV power inductors, energy storage & inverter coils — widely used in automotive, renewable energy, power electronics, and industrial transformer sectors |
