Compression Spring Machine

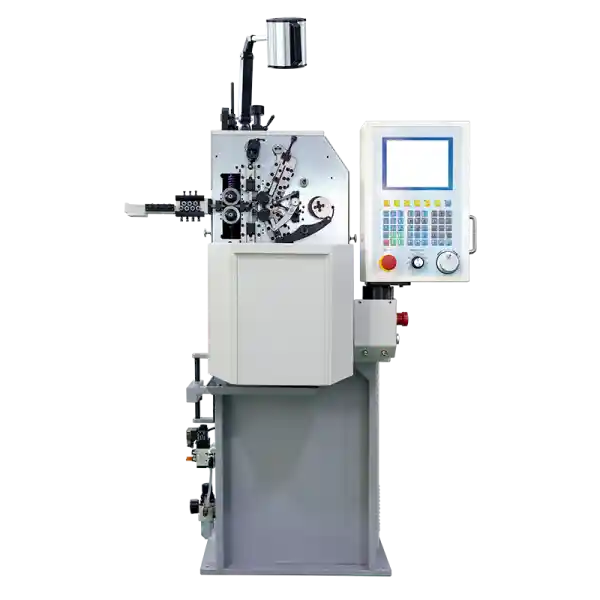

ES-608 / ES-620 / ES-640 CNC Compression Spring Machine
The ES-600 series features 6 synchronized axes with OD control for high-precision and efficient spring production. Its 15” control panel with servo motion system ensures easy operation and flexible cutter adjustments. Automatic motor temperature detection and speed control protect the machine for stable, reliable production.
Application: Compression springs for electronics, automotive, precision devices
Technical Parameter
| Model | ES-608 | ES-620 | ES-640 |
|---|---|---|---|
| Wire Diameter | Ø0.1~0.8 mm | Ø0.5~2.0 mm | Ø1.0~4.0 mm |
| Number of Axes | 6 | 6 | 6 |
| Feeding Speed | 300 m/min | 130 m/min | 100 m/min |
| Outside Diameter | φ25 mm | φ40 mm | φ70 mm |
| Dimension (LWH) | 1000x700x1350 mm | 1100x900x1600 mm | 1250x1200x1700 mm |
| Weight | 550 kg | 1100 kg | 2000 kg |
